Hebei, China (Mainland)
Parlmu
Insulation Sleeving, Insulation Sleeving
Silicone Rubber
Customized Size
-30~150℃
14MPa
YES
Free provided

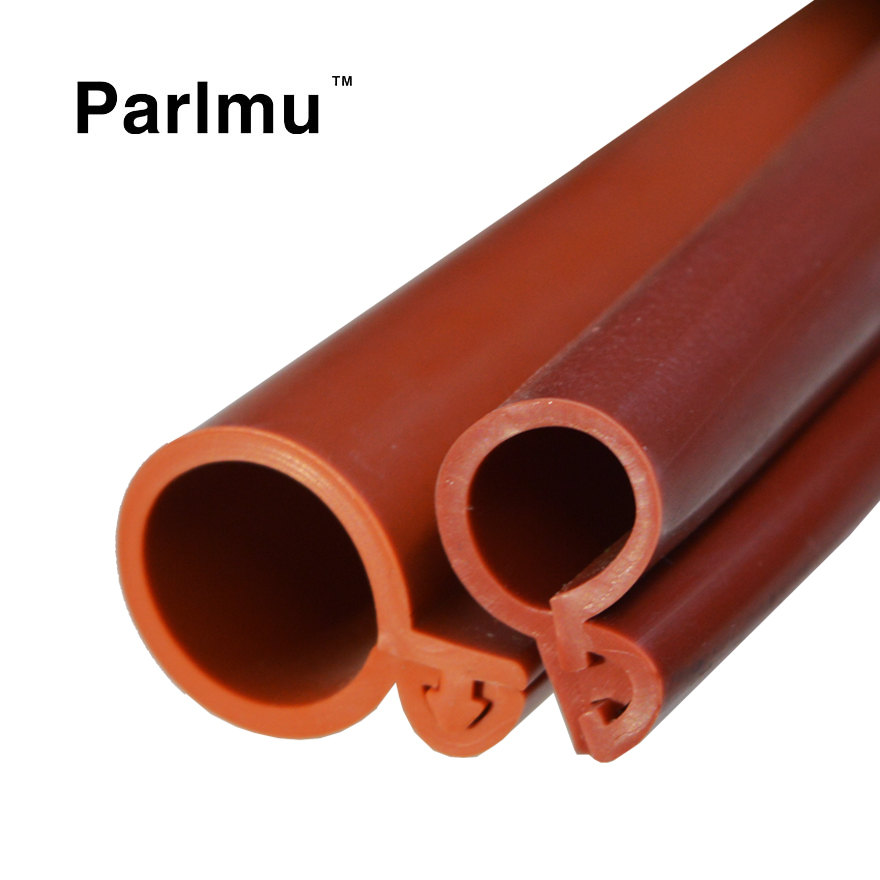

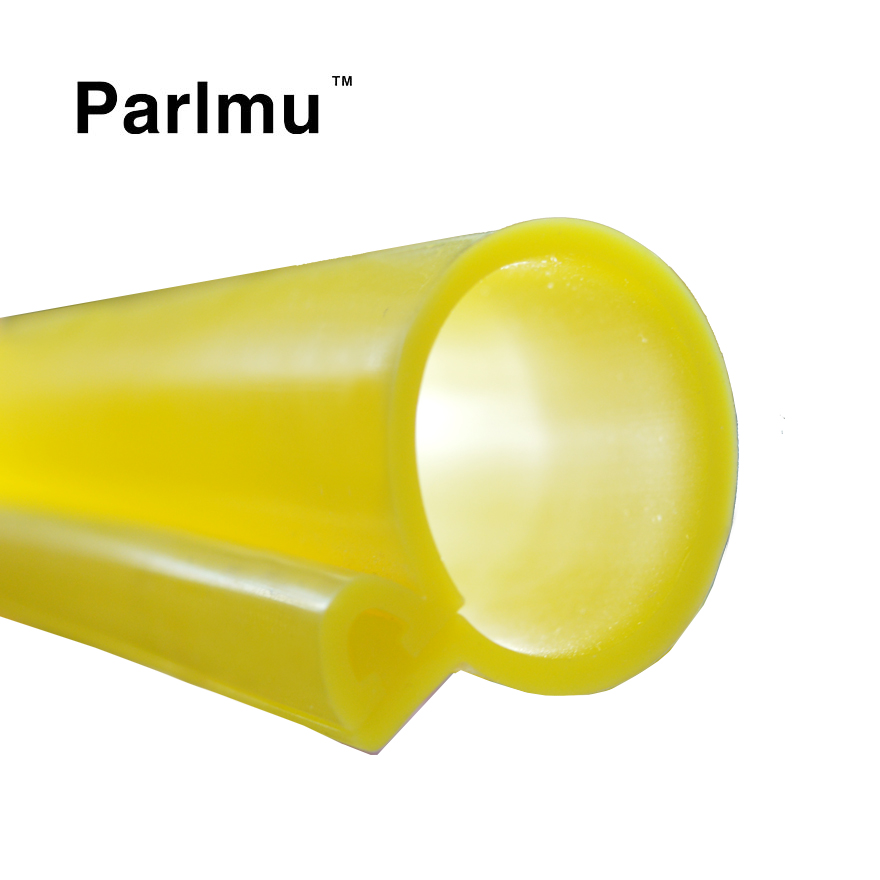

The silicone rubber overhead wire cover is made of high-quality silicone rubber material, which is excellent in high and low temperature resistance, and has strong anti-aging, anti-corrosion and corona resistance.
&Specification Table&
| ID(mm) | Rollof Length/m | ID(mm) | Rollof Length/m |
| 12 | 50 | 32 | 50 |
| 14 | 50 | 35 | 50 |
| 16 | 50 | 38 | 50 |
| 17 | 50 | 40 | 50 |
| 18 | 50 | 43 | 50 |
| 20 | 50 | 45 | 50 |
| 21 | 50 | 48 | 50 |
| 22 | 50 | 50 | 50 |
| 24 | 50 | 51 | 50 |
| 28 | 50 | 52 | 50 |
&Inspection report&
| Serial No. | Properties | Unit | Standard Data | Test Results |
| 1 | Shore Hardness | HA | 70±5 | 69.2 |
| 2 | Tensile Strength | MPa | ≥9.0 | 9.92 |
| 3 | Elongation at break | % | ≥300 | 686 |
| 4 | After Heat ageing(100℃*168h) | |||
| Hardness change | HA | -5~+10 | 8.7 | |
| Tensile Strength Change | % | <25 | -12.7 | |
| Elongation Change | % | <40 | -37 | |
| 5 | Hardness change | |||
| -20℃~0℃ | ≤10 | 5.1 | ||
| 0℃~23℃ | ≤10 | 0.2 | ||
| 23℃~70℃ | ≤10 | -2.7 | ||
| 6 | Low Temperature Flexibility(-40℃) | - | No cracks | No cracks |
| 7 | High Temperature Crack Resistance(260℃) | - | No cracks | No cracks |
&Voltage Ratings/Wall Thickness&
| Voltage(kV) | ≤10KV | ≤35KV | ≤110KV | ≤220KV |
| Thickness | 2mm | ≥3mm | ≥4mm | ≥5mm |
