| Quantity: | |
|---|---|
Hebei, China (Mainland)
Parlmu
flat
HPS-18*22
PP
18mm
22mm
16mm
2mm
2m&50m

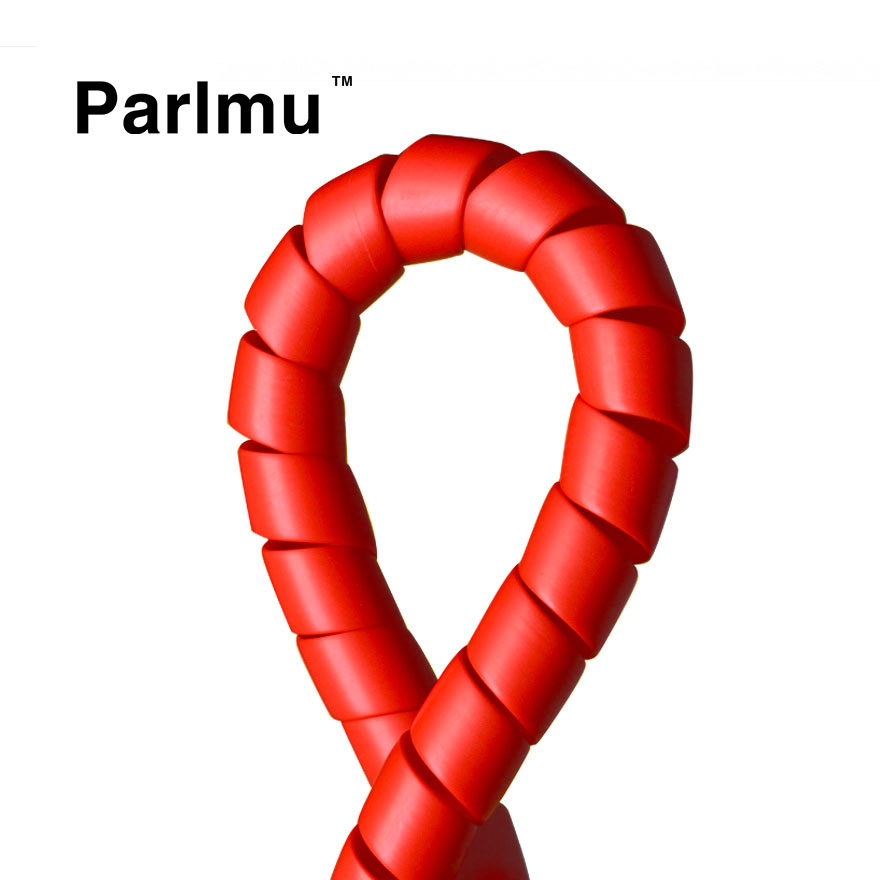

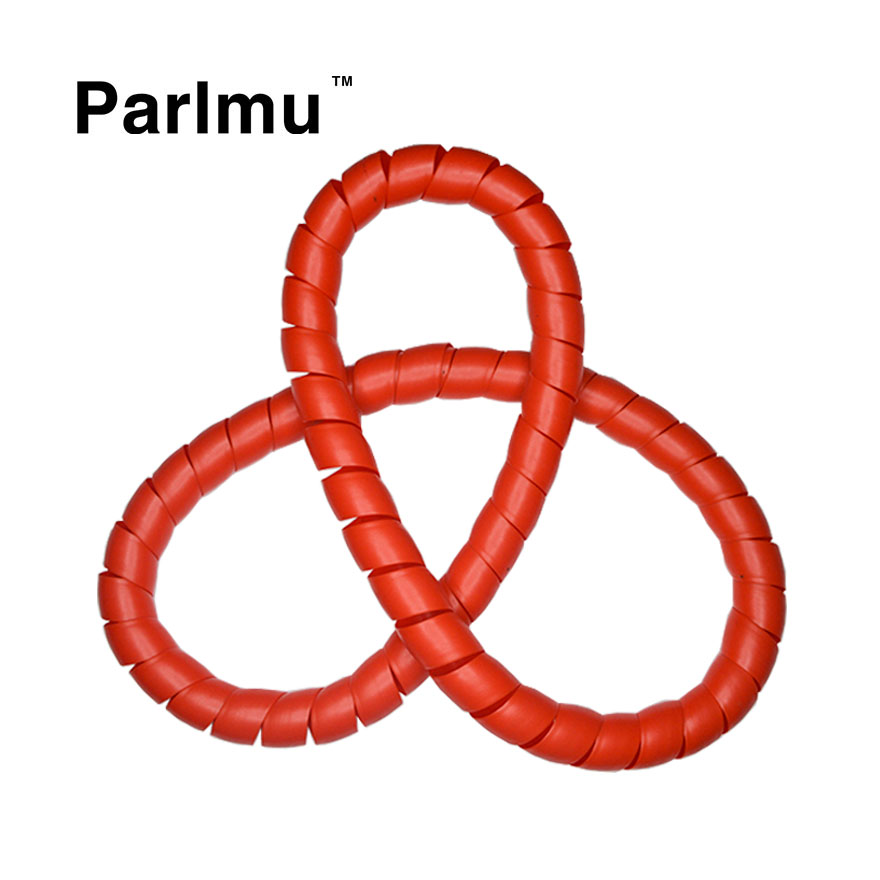

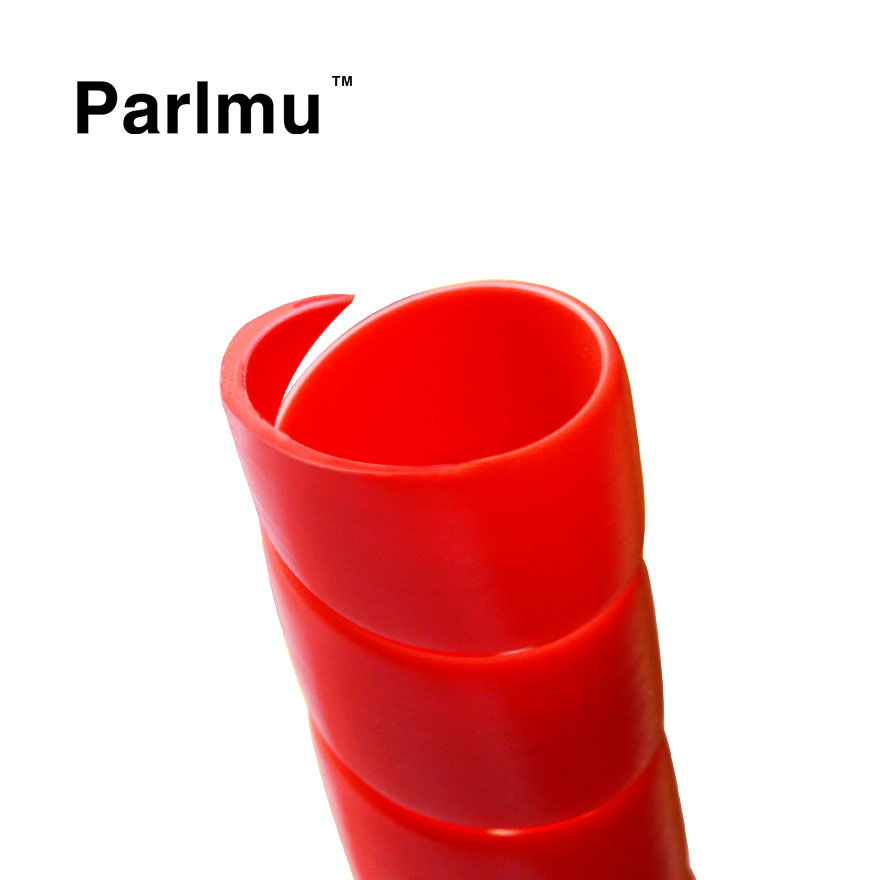

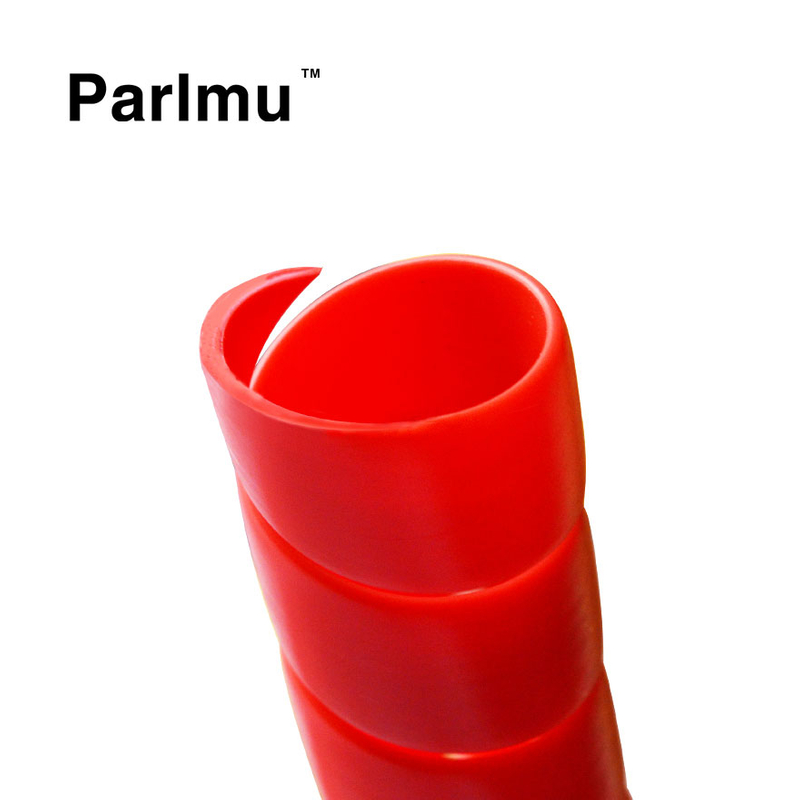

Flexible Screw High Pressure Rubber Hose Red Pp Spiral Hose Wrap Manufacturer
1. Material: Modified pp

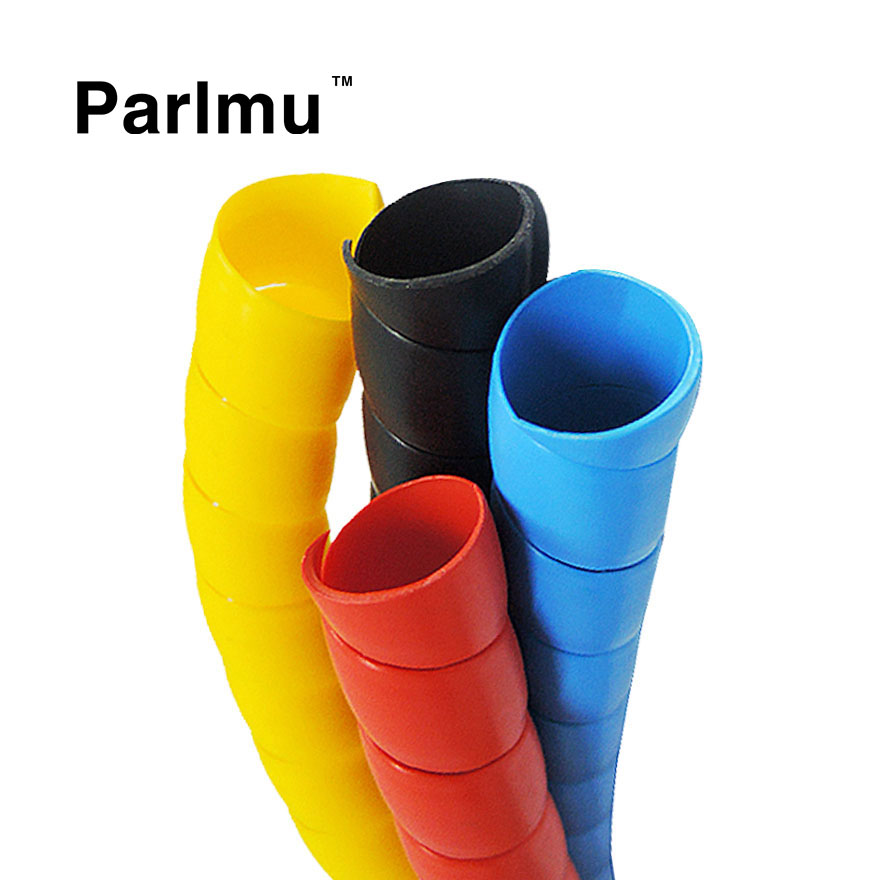

2. Color: black, white, red, blue, yellow; other colors can be customized
3. Sample: Available
4. Warranty period: 1 year
| Part No. | ID | OD | Recommended | Pitch | Weight |
| usage range | |||||
| (mm) | (mm) | Hose OD (mm) | (mm) | (kg) | |
| HPS-8*10.4 | 8 | 10.4 | 8--10 | 8 | 0.033 |
| HPS-10*13 | 10 | 13 | 10--12 | 10 | 0.04 |
| HPS-12*15 | 12 | 15 | 12--14 | 12 | 0.057 |
| HPS-14*17 | 14 | 17 | 14--16 | 14 | 0.0572 |
| HPS-16*20 | 16 | 20 | 16--18 | 15 | 0.07 |
| HPS-18*22 | 18 | 22 | 18--20 | 16 | 0.0878 |
| HPS-20*24.4 | 20 | 24.4 | 20--22 | 18 | 0.0931 |
| HPS-22*26.4 | 22 | 26.4 | 22--25 | 18 | 0.109 |
| HPS-25*29.4 | 25 | 29.4 | 25--28 | 21 | 0.1311 |
| HPS-28*32.4 | 28 | 32.4 | 28--30 | 22 | 0.1652 |
| HPS-30*35 | 30 | 35 | 30--32 | 22 | 0.1884 |
| HPS-32*37 | 32 | 37 | 32--35 | 23 | 0.2 |
| HPS-35*40 | 35 | 40 | 35--38 | 24 | 0.2176 |
| HPS-38*44 | 38 | 44 | 38--42 | 25 | 0.2435 |
| HPS-42*49 | 42 | 49 | 42--45 | 25.5 | 0.41 |
| HPS-45*52 | 45 | 52 | 45--50 | 26 | 0.4269 |
| HPS-50*57 | 50 | 57 | 50--60 | 26 | 0.59 |
| HPS-60*68 | 60 | 68 | 60--74 | 28 | 0.764 |
| HPS-74*83 | 74 | 83 | 74--80 | 47 | 0.958 |
| HPS-80*89 | 80 | 89 | 80--88 | 47 | 1.1625 |
| HPS-88*98 | 88 | 98 | 88--100 | 48 | 1.235 |
| HPS-100*110 | 100 | 110 | 100--130 | 59 | 1.4 |
| HPS-130*140 | 130 | 140 | 130--150 | 49.3 | 1.96 |
Tolerance: ID ±0.5mm, Wall ±0.25mm
