Availability: | |
---|---|
Quantity: | |
Hebei,China
Parlmu
manufacturer
PP
8mm-200mm
2m&50m
Mining, equipment, forestry, agriculture, trucking, automotive etc
97
-30℃ to +100℃- (-22℉ to +212℉)
YES
Available

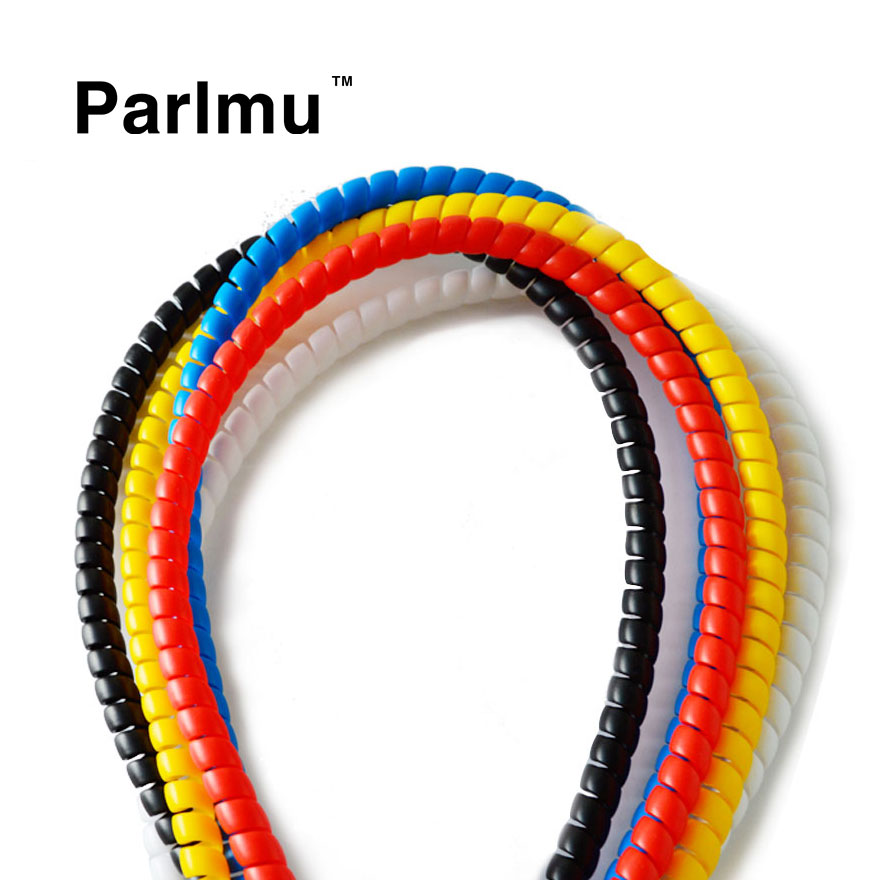

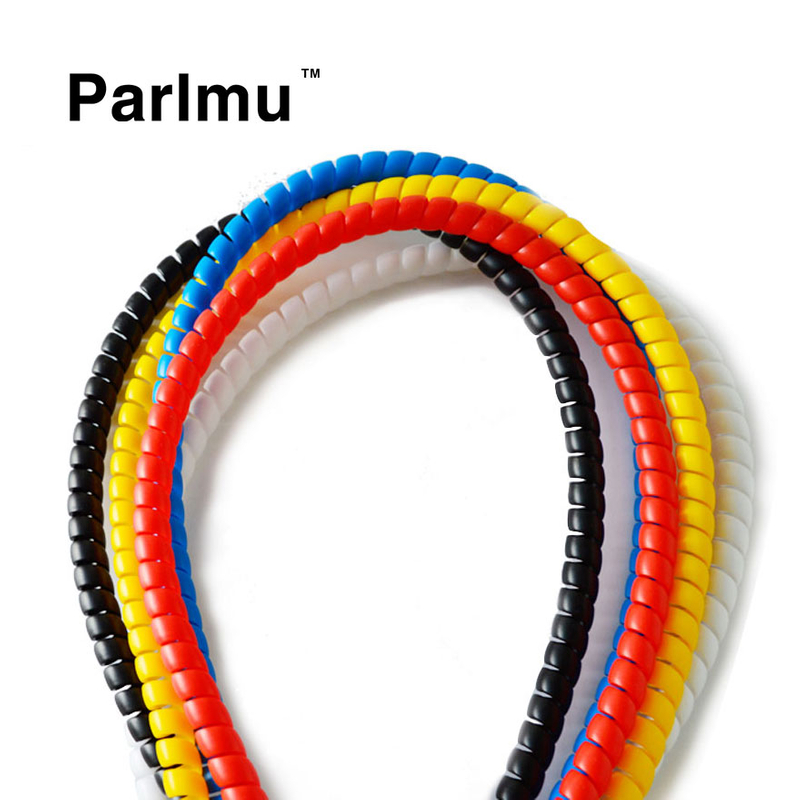

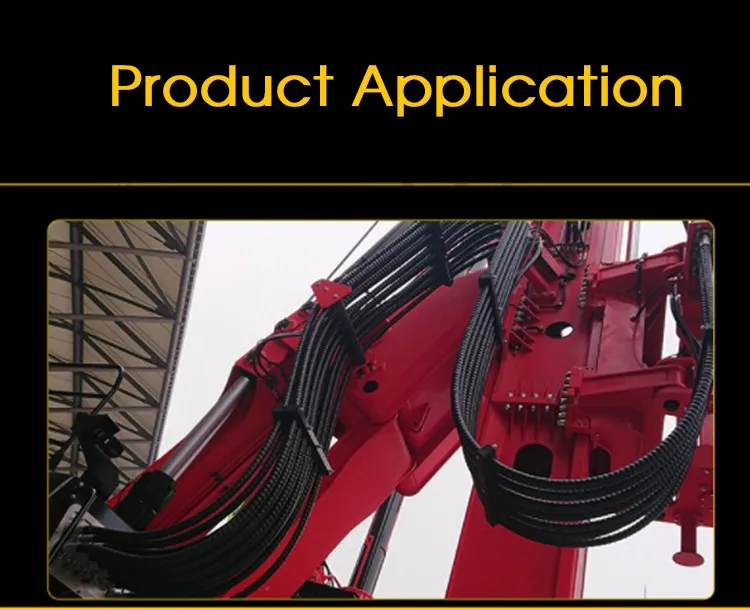

Spiral protective sleeves are a cost-effective way to protect hoses and cables from wear and damage. Spiral protective sleeve made of high-density polypropylene, can withstand extreme conditions. Spiral protective sleeve is widely used, not only can protect hoses and cables from damage; also widely used in excavators, loaders, rollers, forklifts, cranes and other construction machinery.

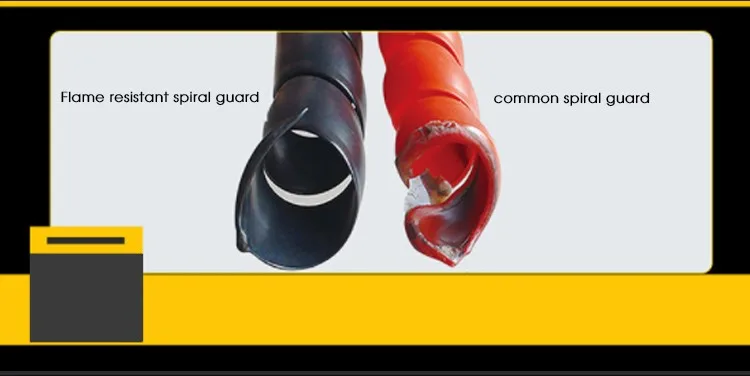

Fire-Resistant PP Spiral Wrap Tubing is a cost-effective solution for your wire harness needs. Fire-Resistant PP Spiral Wire Wrap is a great cost-effective alternative to Nylon Spiral Wire Wrap.
Part No. | OD | ID | Applied for hose O.D. | Pitch | Wall | Length | |
(mm) | (mm) | (inch) | (mm) | (mm) | (mm) | (m/roll) | |
SG-10 | 10.4 | 8 | 5/16" | 8--10 | 8 | 1.2 | 2 / 20 / 50 |
SG-13 | 13 | 10 | 3/8" | 10--12 | 10 | 1.5 | 2 / 20 / 50 |
SG-15 | 15 | 12 | 1/2" | 12--14 | 12 | 1.5 | 2 / 20 / 50 |
SG-17 | 17 | 14 | 3/5 | 14--16 | 14 | 1.5 | 2 / 20 / 50 SG-20 |
SG-20 | 20 | 16 | 5/8" | 16--18 | 15 | 2 | 2 / 20 / 50 |
SG-22 | 22 | 18 | 3/4" | 18--20 | 16 | 2 | 2 / 20 / 50 |
SG-24 | 24.4 | 20 | 4/5" | 20--22 | 18 | 2.2 | 2 / 20 / 50 |
SG-26 | 26.4 | 22 | 9/10" | 22--25 | 18 | 2.2 | 2 / 20 / 50 |
SG-29 | 29.4 | 25 | 1" | 25--28 | 21 | 2.2 | 2 / 20 / 50 |
SG-32 | 32.4 | 28 | 1-1/10" | 28--30 | 22 | 2.2 | 2 / 20 / 50 |
SG-35 | 35 | 30 | 1-1/5" | 30--32 | 22 | 2.5 | 2 / 20 / 50 |
SG-37 | 37 | 32 | 1-1/4" | 32--35 | 23 | 2.5 | 2 / 10 / 20 |
SG-40 | 40 | 35 | 1-2/5" | 35--38 | 24 | 2.5 | 2 / 10 / 20 |
SG-44 | 44 | 38 | 1-1/2 | 38--42 | 25 | 3 | 2 / 10 / 20 SG-49 |
SG-49 | 49 | 42 | 1-3/5" | 42--45 | 25.5 | 3.5 | 2 / 10 / 20 |
SG-52 | 52 | 45 | 1-4/5" | 45--50 | 26 | 3.5 | 2 / 10 / 20 |
SG-57 | 57 | 50 | 2" | 50--60 | 26 | 3.5 | 2 / 10 / 20 |
SG-68 | 68 | 60 | 2-1/2" | 60--74 | 28 | 4 | 2 / 10 / 20 |
SG-83 | 83 | 74 | 2-3" | 74--80 | 47 | 4.5 | 2 / 10 / 20 |
SG-89 | 89 | 80 | 3-3/20" | 80--88 | 47 | 4.5 | 2 / 10 |
SG-98 | 98 | 88 | 3-1/2" | 88--100 | 48 | 5 | 2 / 10 |
SG-110 | 110 | 100 | 4" | 100--130 | 59 | 5 | 2 / 10 |
SG-140 | 140 | 130 | 5" | 130--150 | 49.3 | 5 | 2 / 10 |
SG-162 | 162 | 150 | 6" | 150--200 | 63 | 6 | 2 |
SG-212 | 212 | 200 | 7-8" | 200--250 | 80 | 6 | 2 |

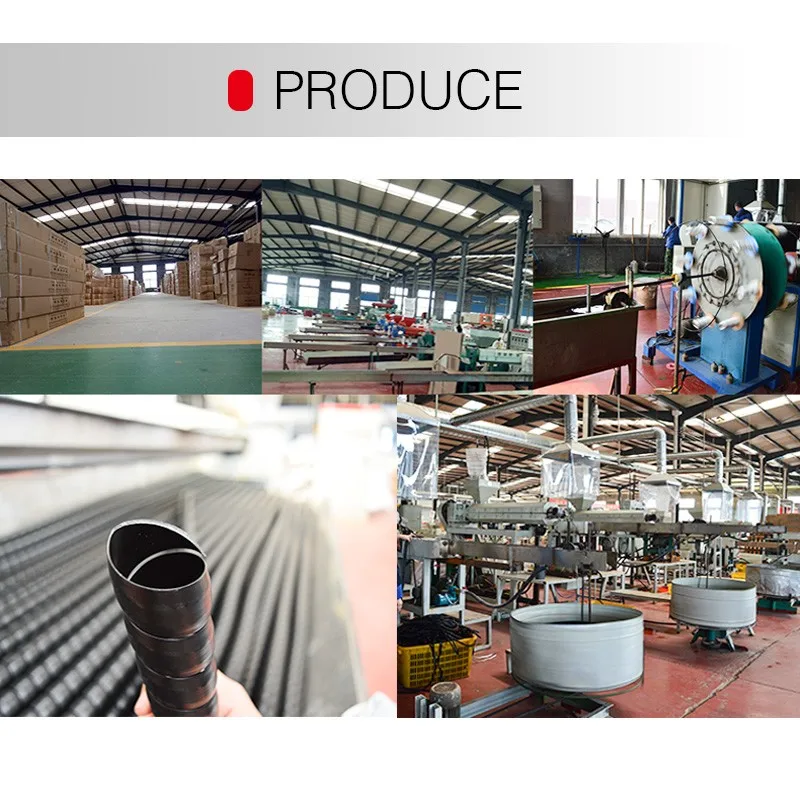

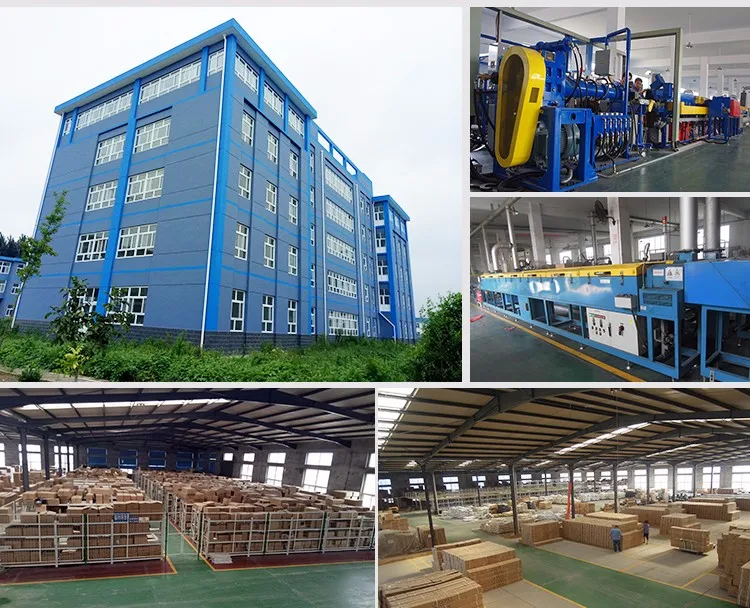

HEBEI PARLMU RUBBER&PLASTIC PRODUCTS CO.,LTD. integrates research, production and sales, and is a backbone company specializing in producing rubber and plastic products such as rubber hose, spiral protective sleeve, backing plates, sealing strip and moulded parts. With strong technical strength, excellent quality products and excellent service, our company has established supporting cooperative relationship with many famous enterprises at home and abroad, and its products are exported to the world and well received by users.
Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Europe, the United States, Japan, Korea, Southeast Asia and other international markets.
1. For 2 m length, use 205x40x20 cm cartons, the spiral guard will be put in the carton one by one.
2. For the spiral guard 50 m or 10 m rolls, we put some rolls into 70x70x70 cartons, or one roll is put in a box, which up to customers request.
3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
1. Sample order
2. One year warranty
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
Q1: Are you a factory or trading company ?
A: We are factory, can ensure that you provide quality products and services
Q2: Can you accept sample order?
A: Yes, samples are free, you only have to pay for shipping and related costs
Q3: What is your MOQ?
A: Normally,500 meters for each model
Q4:What is your delivery time?Can we short it in 7 days or less?
A: 3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Q5:Could we pay a visit to your factory ?
A: Yes, welcome to visit the factory at any time, video inspection
Q6:Can you Product support custom?
A:Yes, we can customize the model, length, and color as required. However, the specific communication with the technology confirms that you will be satisfied with the reply as soon as possible
If have any questions ,could contact me at any time , will reply to you within 24 hours ,contact as follows:
Sunny
Sales Manager
Hebei Parlmu Rubber&Plastic Products Co., Ltd.
p: +86-311-68079955 m: +86-15613386950
a: South of Huigong Road, Qinghe Hebei, China
w: parlmu.com e: sunny@ parlmu.com
Wechat / Whatsapp +86 156 1338 6950
